Observe a pipeline

Open the pipeline in the web application and use Monitoring and Logs to inspect its activity. Compare these observations with source and target data before treating a run as successful.

Inspect the web application

In Pipelines, open your pipeline and select Monitoring. Review its current metrics and target acknowledged positions. Use the refresh control to update the display, or pause automatic refresh while inspecting a value.

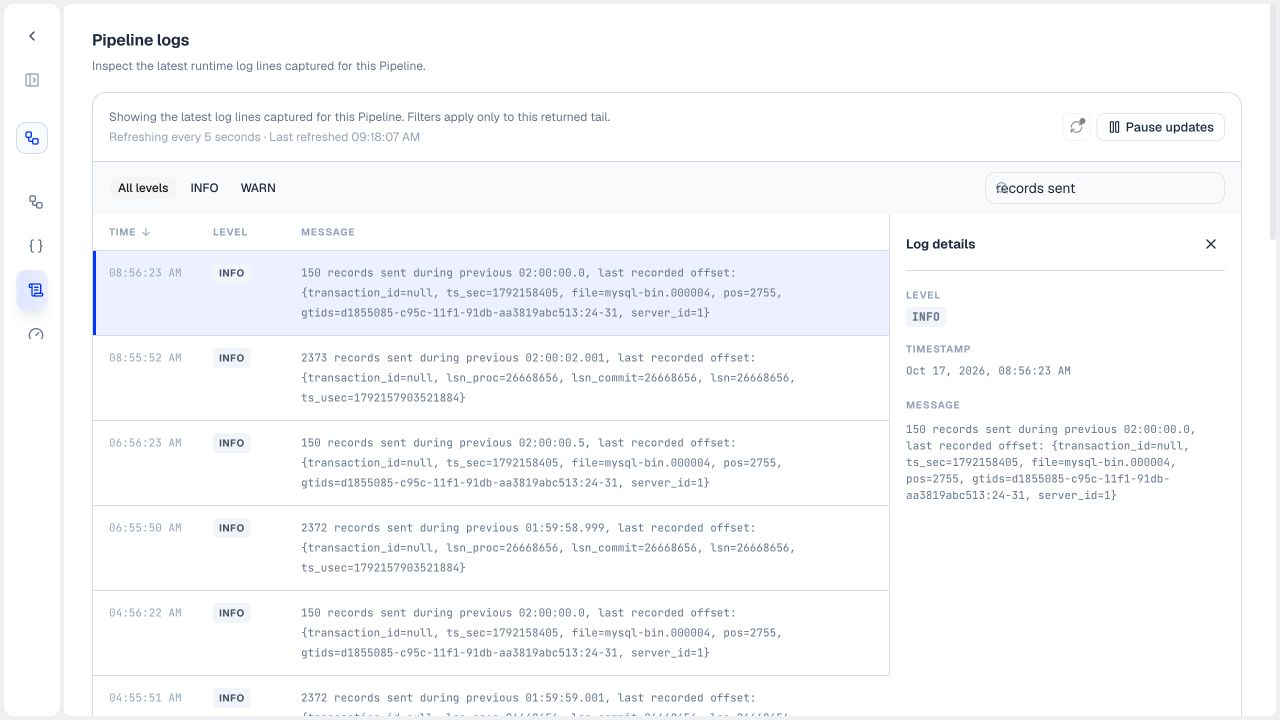

Select Logs to inspect recent runtime messages. Filter by level or use Search this log tail, then select a line to open Log details. These filters narrow the returned tail; they do not search a historical log archive.

CLI and API access

CLI, REST, and MCP expose the same underlying observations for troubleshooting and automation. The commands below assume an authenticated CLI session.

Read status

status orders_to_operational_state
status orders_to_operational_state --watch

States include:

• NEW: known to the server, with no runtime observation yet;
• RUNNING: executing;
• PAUSED: intentionally paused;
• STOPPED: stopped; checkpoints may be retained or cleared, depending on the stop request;
• COMPLETED: a bounded input was exhausted;
• FAILED: the running job stopped unexpectedly.

The status response separates three facts:

A saved draft can have displayState: DRAFT and hasArtifact: false. A known pipeline requested to run can show STARTING before the first runtime observation. Neither creates an observedAt timestamp. Once an observation exists, observedAt records when it was captured; inspect its freshness alongside logs and confirmed target progress.

When a job fails, the CLI status output includes failureCode and failureMessage with the FAILED state. failureCode is the stable machine key; failureMessage is the reader-facing explanation. Healthy states omit these fields.

status --watch uses an authenticated WebSocket and emits runtime state changes. For a known pipeline with no observation, it stays open without inventing an initial state event. An unknown ID is refused. A failure frame carries the same failure fields. A normal connection drop may be re-attached, but a coded server refusal ends the watch and reports the code. Press Ctrl+C to stop watching without stopping the pipeline.

Read the execution plan

When available, status includes a plan describing requested and effective parallelism for each node, member counts, and batching. awaitingRebalance lists cluster members that joined after the run was planned and have no part of it until rebalance. Use the effective plan when checking execution; a requested parallelism is a cluster-wide target, not a count per member. See Pipeline reference.

Explain a lack of progress

In a connected session, run explain <pipeline-id>. The explanation uses the same failure and freshness evidence as status. It can identify an old observation or sustained lack of confirmed progress; NO_MATCH means no rule matched, not that delivery is healthy.

A stale observation and a stalled pipeline are different conditions. The explanation considers an observation older than 30 seconds stale. Stall pressure requires at least 60 seconds without frontier movement; a brief pause alone is insufficient. Compare source activity, confirmed target positions, logs, and target records before restarting anything.

If no observation exists, the read returns monitor.no-observation. Missing evidence must not become a healthy state in a dashboard.

Read metrics

metrics orders_to_operational_state

Metrics are an open map rather than a fixed schema. Depending on the active runtime path, the response can include numeric counters and a perTableOffset map of table names to opaque source positions.

For a pipeline that uses nest, the runtime reports one nestDeadLettered.<namespace> entry for each namespace that could not place changes into a document. The entry is absent when that namespace has no discarded changes; the runtime does not emit one aggregate dead_lettered key. Check the pipeline logs for the failure code and affected key. If you need a pipeline-wide total, sum the namespace entries in your client.

An absent metric is unavailable, not zero. Do not build a strict parser that rejects new metric keys.

Unlike status, metrics, snapshot, and explanation reads require a runtime observation. An applied pipeline without one returns monitor.no-observation. A draft without a published artifact returns lifecycle.unknown-pipeline.

Output counters reflect target acknowledgements. Source-read, buffered, and target-confirmed positions are different facts. The CLI renders serialized positions as opaque fingerprints; these can identify a change but do not reveal a binlog coordinate or LSN. A write-back summary also hides opaque coordinates. Raw position JSON remains the format used for position edits. See CLI position commands.

Read snapshot progress

snapshot orders_to_operational_state

Snapshot progress is per table. For chain-backed initial loads, confirmed completion can survive a replacement run or member takeover. The current run's snapshot.rows.read.<table> counter can therefore differ from the persisted completion count. This retained completion does not apply to snapshot_only runs.

A missing total must not be interpreted as 0% or 100%. Compare target counts and representative keyed samples; an empty snapshot result alone does not establish success or failure.

Read recent history

Choose a time range that contains your run. For example:

metrics orders_to_operational_state --from 2026-09-29T01:00:00Z --to 2026-09-29T02:00:00Z --resolution 5m --table orders

History reports target-confirmed output rates and lag for explicitly selected tables. Lag is the age of the last target acknowledgement, not a count of queued rows. Omitting --table omits table lag.

• Sampling defaults to once per 60 seconds; retention defaults to 15 days. Operators can change tapstate.metrics.history.sample-interval and tapstate.metrics.history.retention.
• Read the effective range and retention cutoff. Old samples may have expired.
• Keep resets and gaps visible. A missing rate or NO_RETAINED_SAMPLES is not zero throughput.
• Continue with nextCursor while repeating the original query. Cursors expire after 10 minutes; restart the query if one expires. Results are eventually consistent, not a fixed audit snapshot.

See History parameters for limits, resolutions, and error handling, or use pipeline_metrics_history from an AI agent.

Export metrics

Export is optional. Without an OTLP endpoint or Prometheus port, the server starts neither exporter. These settings do not disable built-in observations.

Prometheus export has no built-in authentication and can expose pipeline, table, and namespace identifiers. If a scraper needs another bind address, restrict access to that network. It does not use the control API's bearer token.

Read and follow logs

logs orders_to_operational_state
logs orders_to_operational_state --follow

Logs are a bounded tail from the node serving the request. They are not a durable audit history or an aggregated multi-node log. An empty log result is valid when the pipeline has not logged on that node.

Connector log forwarding

Connector and PDK runtime logs are forwarded into the pipeline's log stream under the connector identifier (io.tapstate.connector.<connector-id>). Connector warnings and errors are preserved in the stream, while verbose debug chatter is filtered to protect the bounded tail. This enables operators to diagnose driver disconnects, authorization errors, retry loops, and schema anomalies directly via logs without host-level log access.

logs --follow opens an authenticated WebSocket and sends newly observed lines. Under a burst, a bounded tail can re-send a line when it re-tails after eviction; consumers should tolerate duplicates. A normal connection drop may be re-attached, but a server close carrying a coded refusal terminates the follow operation and reports the code instead of reconnecting indefinitely.

Build an evidence set

For a run review, capture:

• output from tapstate version and the pipeline revision;
• final status;
• relevant metrics and per-table positions;
• the smallest useful log tail;
• source and target row counts;
• insert, update, and delete samples;
• timestamps and the expected result.

Remove secrets and customer data before sharing the evidence.
